VACUUM PUMP UNITS
Features:
1. High Pumping Speed
2. Short Pumpdown Time
3. Model JK and JTK 10-2-10-4 Pa
Model JF 10-2-10-4 Pa
4. Producing Clean Vacuum by Model JF Units
Applications:
1. Chemical Engineering
2. Petroleum Industry
3. Elegtronics Industry
4. Vacuum Metallurgy
Note:Offer Ultra-High Vacuum Unit with its Ultimate Pressure lower than 10-8 Pa to meet the customer requirements
Option

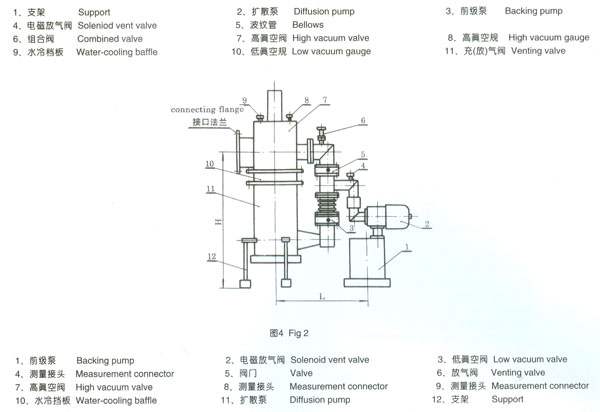

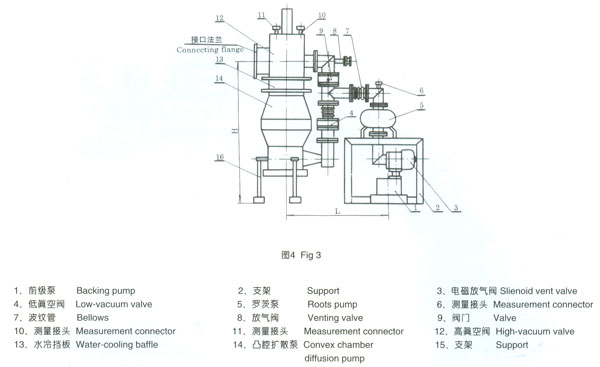

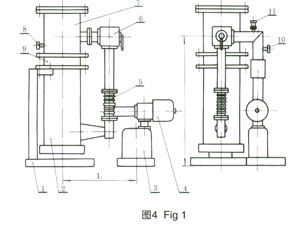

To meet your application demands, you can choose Fig.1 for Model JK and JTK 200 (or less than 200) diffusion pump units, Fig.2 and fig.3 for Models JK and JTK (or more than 300) diffusion pump units, FigA for Model JF turbomolecular pump unit.
Outline of Model JK Diffusion Pump Unit
.jpg)
| Model |
JK-100 |
JK-150 |
JK-200 |
JK-300 |
JK-400 |
JK-630 |
JK-800 |
| Ultimate pressure (Pa) |
10-4 |
| Pumping speed (1/S) |
100 |
280 |
420 |
900 |
1800 |
4000 |
6500 |
| Max.pumping pressure (Pa) |
35 |
| Heating power (Kw) |
0.8 |
1 |
1.5 |
2.5 |
4.5 |
7 |
9 |
| Matched main pump |
K-100 |
K-150 |
K-200 |
K-300 |
K-400 |
K-630 |
K-800 |
| Matched baffle |
LB-100 |
LB-150A |
LB-200B |
LB-300A |
LB-400 |
LB-630 |
LB-800 |
| Matched valve |
GD-100 |
GD-150 |
GD-200 |
GDO-300 |
GDO-400 |
GDO-630 |
GDO-800 |
| Matched backing pump |
2X-4 |
|
2X-8 |
2X-15 |
2X-30 |
2X-70 |
2X-70
ZJ-500 |
| Connecting fiange |
LF-100 |
LF-150 |
LF-200 |
LF-300 |
LF-400 |
LF-630 |
LF-800 |
| Structure dimensions(mm) |
H
|
870 |
1000 |
1300 |
1500 |
1800 |
2100 |
2500 |
|
L
|
550 |
650 |
750 |
850 |
950 |
1100 |
2000 |
Outline of Model JTK Diffusion Pump Unit
| Model |
JTK-100 |
JTK-150 |
JTK-200 |
JTK-300 |
JTK-400 |
JTK-500 |
| Ultimate pressure (Pa) |
10-4 |
| Pumping speed (1/S) |
180 |
370 |
600 |
1400 |
2500 |
4000 |
| Max.pumping pressure (Pa) |
35 |
| Heating power (Kw) |
0.8 |
1 |
1.5 |
2.2 |
4 |
6 |
| Matched main pump |
TK-100 |
TK-150 |
TK-200 |
K-300 |
TK-400 |
TK-500 |
| Matched baffle |
LB-100 |
LB-150A |
LB-200B |
LB-300A |
LB-400 |
LB-500 |
| Matched valve |
GB-100 |
GD-150 |
GD-200 |
GDQ-300 |
GDQ-400 |
GDQ-500 |
| Matched backing pump |
2X-4 |
2X-8 |
2X-15 |
2X-30 |
2X-70 |
2X-70
ZJ-500 |
| Connecting fiange |
LF-100 |
LF-150 |
LF-200 |
LF-300 |
LF-400 |
LF-500 |
| Structure dimensions(mm) |
H
|
870 |
1000 |
1300 |
1500 |
1800 |
1900 |
|
L
|
650 |
750 |
850 |
950 |
1100 |
1500 |
|
